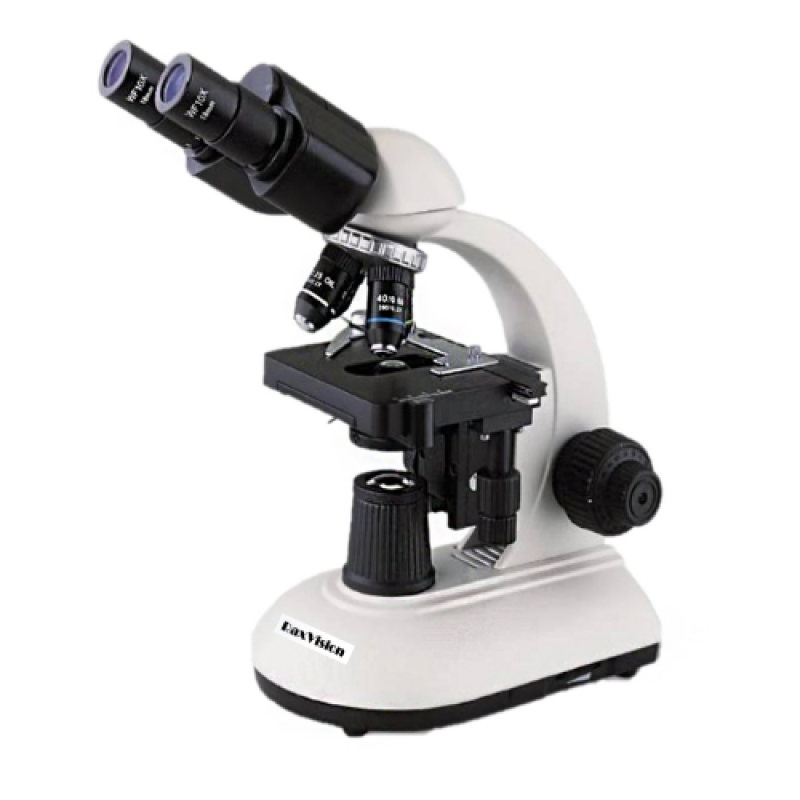

Binocular head Microscope (up to 1000x magnification)

Brand: RaxVision
Model: B-60B
Binocular head WF10X/18MM Achromatic Objective 4x, 10x, 40x, 100x Quadruple Nosepiece LED Lamp

Features:
•40X to 1600X expanded magnification range using high-quality, color-coded objective lenses, and 10X and 16X eyepieces.
•An economical microscope for students and professionals, the B-60 packs high-quality optics and refined mechanics into a compact form.
•Professional features include a Siedentopf binocular head for precise adjustments, a 2- layer mechanical stage with low-position controls, and coaxial coarse and fine focus for ergonomics and an efficient workflow.

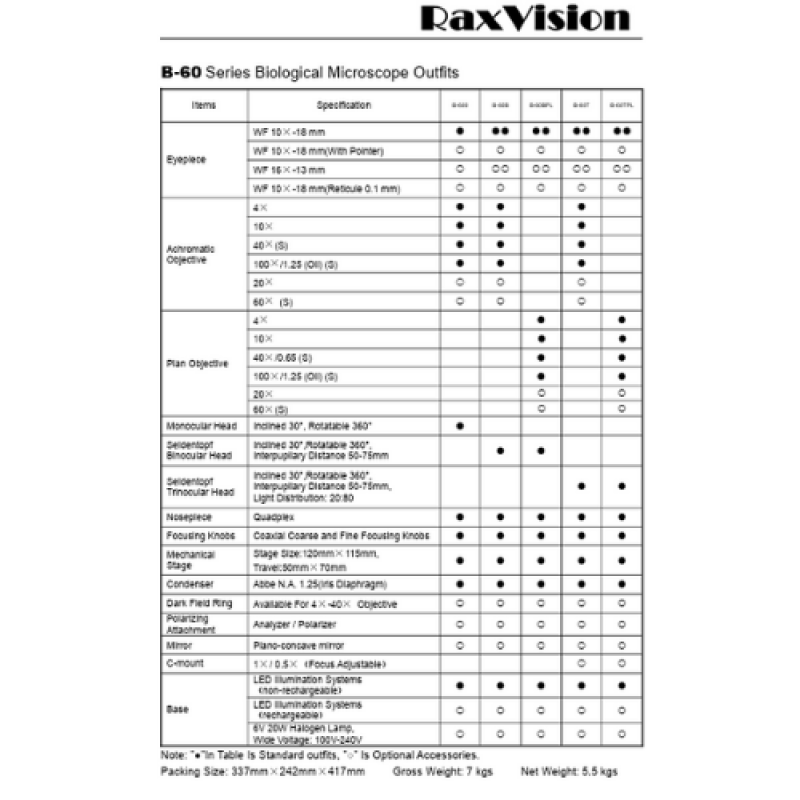

Specifications:

- Head:  Binocular, 30° incline, 360° rotatable
- Interpupillary Adjustment: Siedentopf, 55-75mm
- Eyepieces : 10X, 16X (Optional)
- Objective Lenses: DIN standard
- Objective Turret: Quadruple
- Focusing System: Coaxial coarse and fine focus
- Stage Design: Double-layer with caliper
- Stage Dimensions: 120mm x 115mm
- X-Y Travel: 70mm x 50mm
- Transmitted Illumination:  Super Bright LED Illumination
- Condenser:  NA 1.25 Abbe condenser with iris diaphragm
- Warranty: 1year

 Lead Time Order: 6-12weeks
