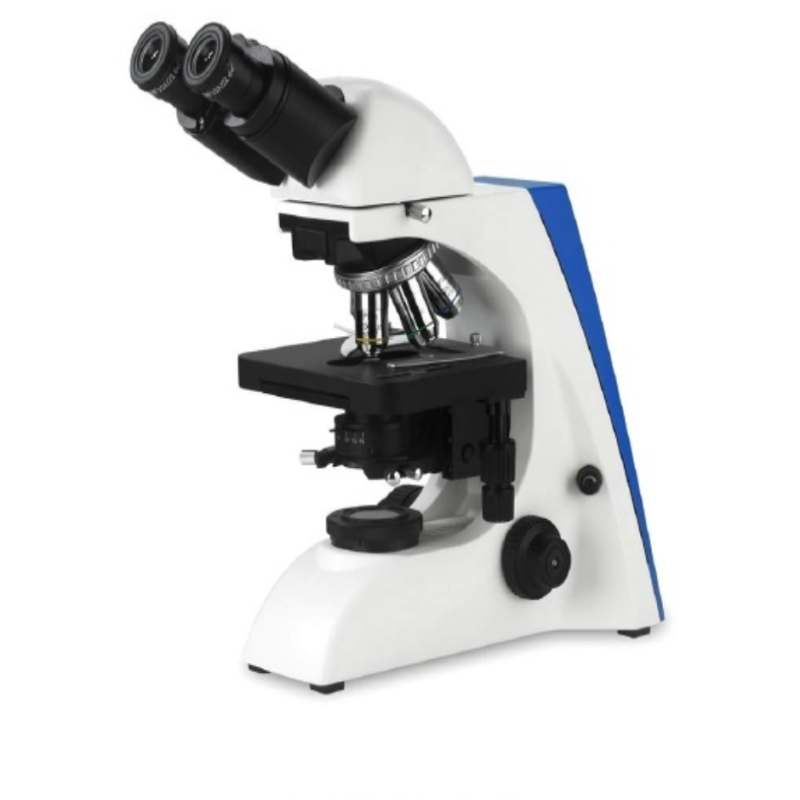

Raxvision B-550 Series represents the ideal, ultra-modern, advanced routine microscope for efficient analysis in transmitted light applications, carefully engineered considering all the relevant aspects for users. Its wide field eyepiece with view field up to Φ22mm allows comfort observation.

Specification:
Eyepiece: WF10×／22mm (adjustable)

Infinity Plan Objectives: PLAN 4×／0.10       W.D.=12.10mm

                                            PLAN 10×／0.25      W.D.=4.64mm

                                            PLAN 20×／0.40(S)  W.D.=2.41mm

                                            PLAN 40×／0.66(S)   W.D.=0.65mm

                                            PLAN 100×／1.25(S, Oil) W.D.=0.12mm

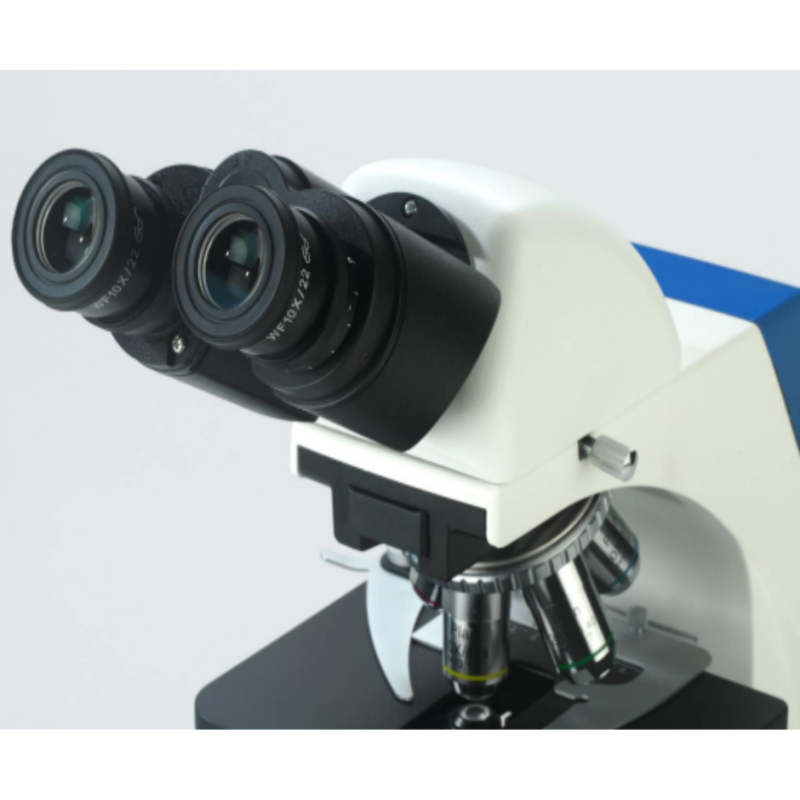

Seidentopf Binocular Head: Inclined 30°,rotatable 360°, Interpupilary              distance:48mm-76mm

Nosepiece: Quintuple

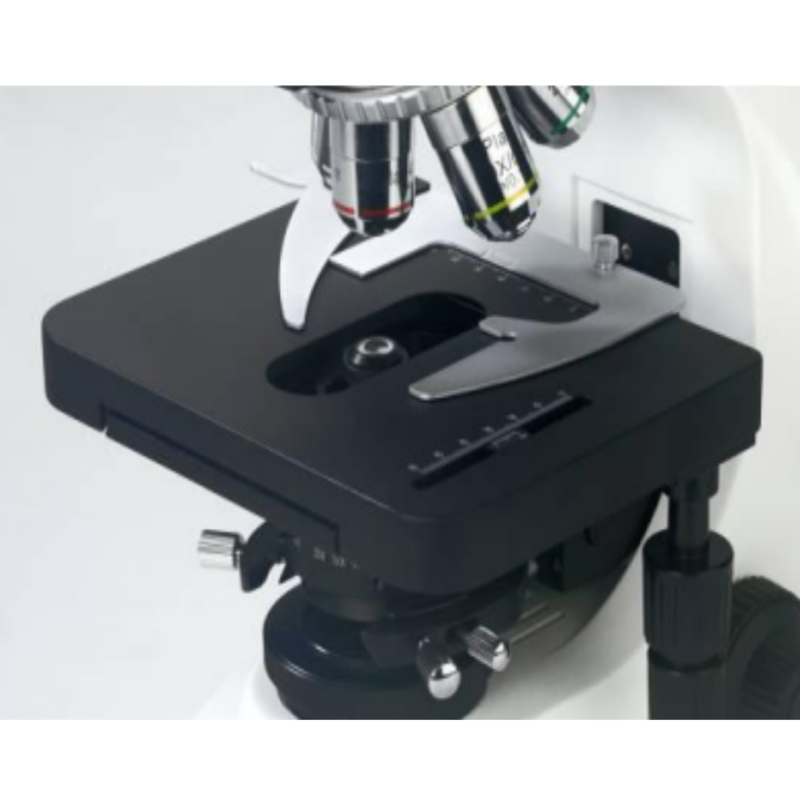

Mechanical Stage:

Integrated stage
Stage size: 182 mm×140mm,Travel range: 77mm×52mm
Two-slide holder

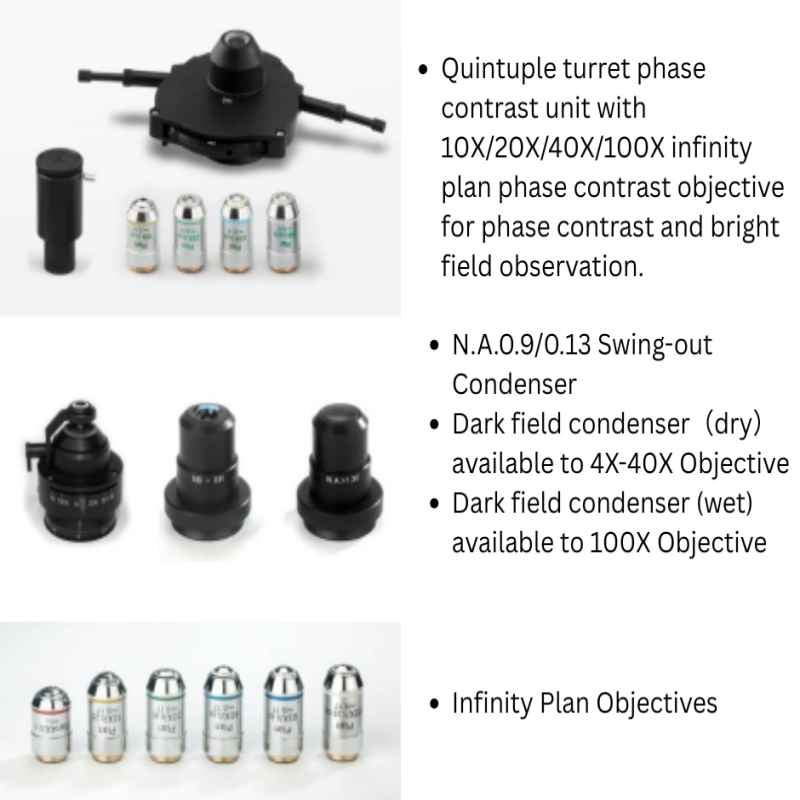

Swing Out Condenser:

N.A. 0.9/0.13, Swing out with iris diaphragm.

Koehler Illumination:

6V/30W Halogen Lamp
Wide voltage input: 100V～240V
 Field diaphragm , center adjustable

Filter: Blue

Packing Size:  520mm×475mm×285mm

Gross Weight: 12 kgs

Net Weight: 10kgs
